Description
Chemical Composition (%)
| C | Mn | P | S | Si | Cr | Ni | N |
|---|---|---|---|---|---|---|---|
| ≤0.15 | 5.5-7.5 | ≤0.060 | ≤0.030 | ≤1.00 | 16.0-18.0 | 3.5-5.5 | ≤0.25 |
Mechanical Properties (Annealed)
| Tensile Strength | Yield Strength | Elongation | Hardness |
|---|---|---|---|
| ≥515 MPa | ≥275 MPa | ≥40% | ≤217 HB |
Physical Properties
| Density | Melting Point | Thermal Expansion | Thermal Conductivity | Elastic Modulus |
|---|---|---|---|---|
| 7.93 g/cm³ | 1400-1450°C | 16.0 μm/m·°C | 16.2 W/m·°C | 195 GPa |

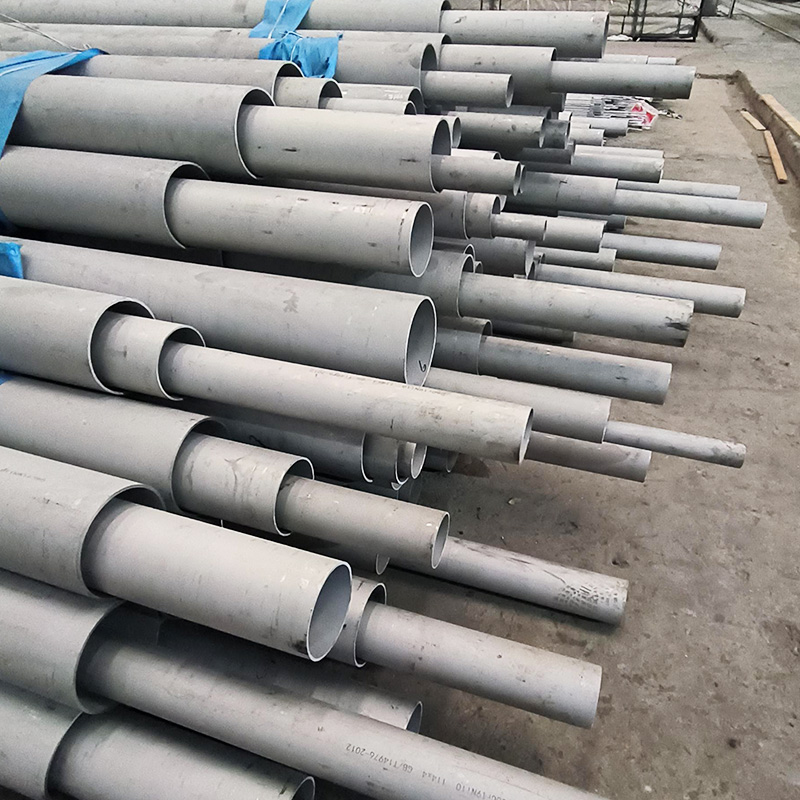

201 Stainless Steel Pipe
Specifications & Applications: Cost-effective Cr-Ni-Mn austenitic stainless steel pipe; Mn replaces Ni to lower cost while offering good strength and formability for tubular applications. Applications: Ornamental tubing, structural piping, light-duty fluid lines, furniture, handrails
Chemical Composition (%)
| C | Mn | P | S | Si | Cr | Ni | N |
|---|---|---|---|---|---|---|---|
| ≤0.15 | 5.5-7.5 | ≤0.060 | ≤0.030 | ≤1.00 | 16.0-18.0 | 3.5-5.5 | ≤0.25 |
Mechanical Properties (Annealed)
| Tensile Strength | Yield Strength | Elongation | Hardness |
|---|---|---|---|
| ≥515 MPa | ≥275 MPa | ≥40% | ≤217 HB |
Physical Properties
| Density | Melting Point | Thermal Expansion | Thermal Conductivity | Elastic Modulus |
|---|---|---|---|---|
| 7.93 g/cm³ | 1400-1450°C | 16.0 μm/m·°C | 16.2 W/m·°C | 195 GPa |
