| Chemical Composition (wt %, max unless range given) | |||||||
|---|---|---|---|---|---|---|---|
| C | Mn | P | S | Si | Cr | Ni | N |
| <=0.08 | <=2.00 | <=0.045 | <=0.030 | <=1.00 | 18.0-20.0 | 8.0-11.0 | 0.10-0.16 |
| Mechanical Properties (annealed tube) | ||||
|---|---|---|---|---|
| Tensile Strength | Yield Strength | Elongation | Reduction of Area | Hardness |
| >=550 MPa | >=240 MPa | >=30 % | >=50 % | <=217 HB |
| Physical Properties (typical) | ||||
|---|---|---|---|---|
| Density | Melting Point | Thermal Expansion | Thermal Conductivity | Modulus of Elasticity |
| 8.03 g/cm3 | 1400-1455 °C | 17.3 μm/m·°C | 16.2 W/m·°C | 193 GPa |

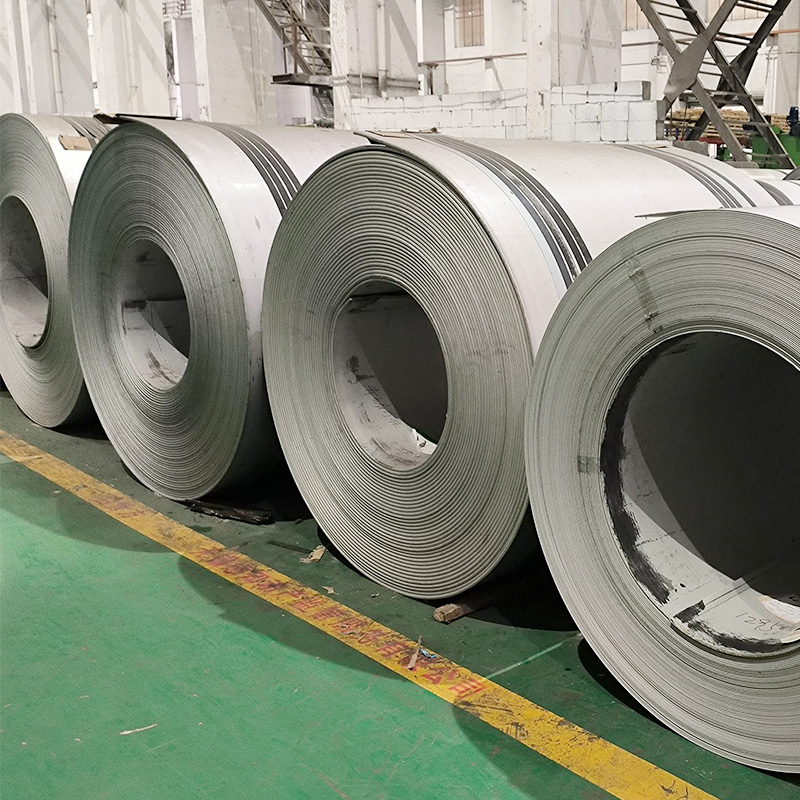

304N Stainless Steel Coil
Nitrogen-containing 304 stainless steel coil; nitrogen increases strength without reducing ductility; higher strength than standard 304 for roll-formed structural sections.
| Chemical Composition (wt %, max unless range given) | |||||||
|---|---|---|---|---|---|---|---|
| C | Mn | P | S | Si | Cr | Ni | N |
| <=0.08 | <=2.00 | <=0.045 | <=0.030 | <=1.00 | 18.0-20.0 | 8.0-11.0 | 0.10-0.16 |
| Mechanical Properties (annealed tube) | ||||
|---|---|---|---|---|
| Tensile Strength | Yield Strength | Elongation | Reduction of Area | Hardness |
| >=550 MPa | >=240 MPa | >=30 % | >=50 % | <=217 HB |
| Physical Properties (typical) | ||||
|---|---|---|---|---|
| Density | Melting Point | Thermal Expansion | Thermal Conductivity | Modulus of Elasticity |
| 8.03 g/cm3 | 1400-1455 °C | 17.3 μm/m·°C | 16.2 W/m·°C | 193 GPa |
