Description
| Chemical Composition (wt %, max unless range given) | |||||||
|---|---|---|---|---|---|---|---|
| C | Mn | P | S | Si | Cr | Ni | Nb |
| <=0.08 | <=2.00 | <=0.045 | <=0.030 | <=1.00 | 17.0-19.0 | 9.0-12.0 | =10×C to 1.10 |
| Mechanical Properties (annealed tube) | ||||
|---|---|---|---|---|
| Tensile Strength | Yield Strength | Elongation | Reduction of Area | Hardness |
| >=515 MPa | >=205 MPa | >=40 % | >=50 % | <=217 HB |
| Physical Properties (typical) | ||||
|---|---|---|---|---|
| Density | Melting Point | Thermal Expansion | Thermal Conductivity | Modulus of Elasticity |
| 8.03 g/cm3 | 1398-1446 °C | 16.7 μm/m·°C | 16.2 W/m·°C | 193 GPa |

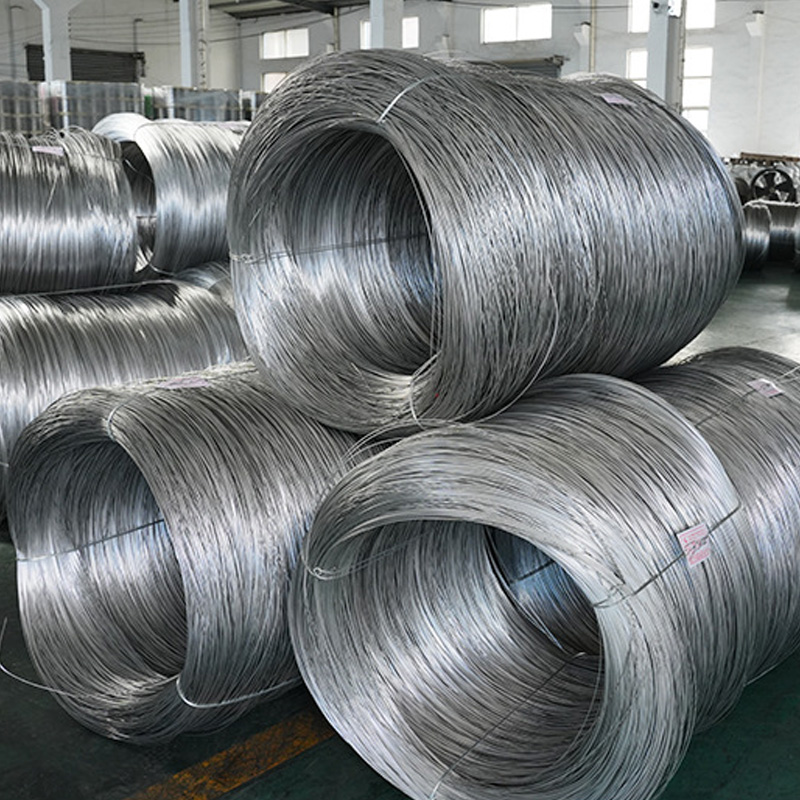

347 Stainless Steel Wire
Niobium-stabilized austenitic stainless steel wire; niobium provides more stable high-temperature performance for welded aerospace flex lines and sensor sheaths.
| Chemical Composition (wt %, max unless range given) | |||||||
|---|---|---|---|---|---|---|---|
| C | Mn | P | S | Si | Cr | Ni | Nb |
| <=0.08 | <=2.00 | <=0.045 | <=0.030 | <=1.00 | 17.0-19.0 | 9.0-12.0 | =10×C to 1.10 |
| Mechanical Properties (annealed tube) | ||||
|---|---|---|---|---|
| Tensile Strength | Yield Strength | Elongation | Reduction of Area | Hardness |
| >=515 MPa | >=205 MPa | >=40 % | >=50 % | <=217 HB |
| Physical Properties (typical) | ||||
|---|---|---|---|---|
| Density | Melting Point | Thermal Expansion | Thermal Conductivity | Modulus of Elasticity |
| 8.03 g/cm3 | 1398-1446 °C | 16.7 μm/m·°C | 16.2 W/m·°C | 193 GPa |
